Description

Technical Specification

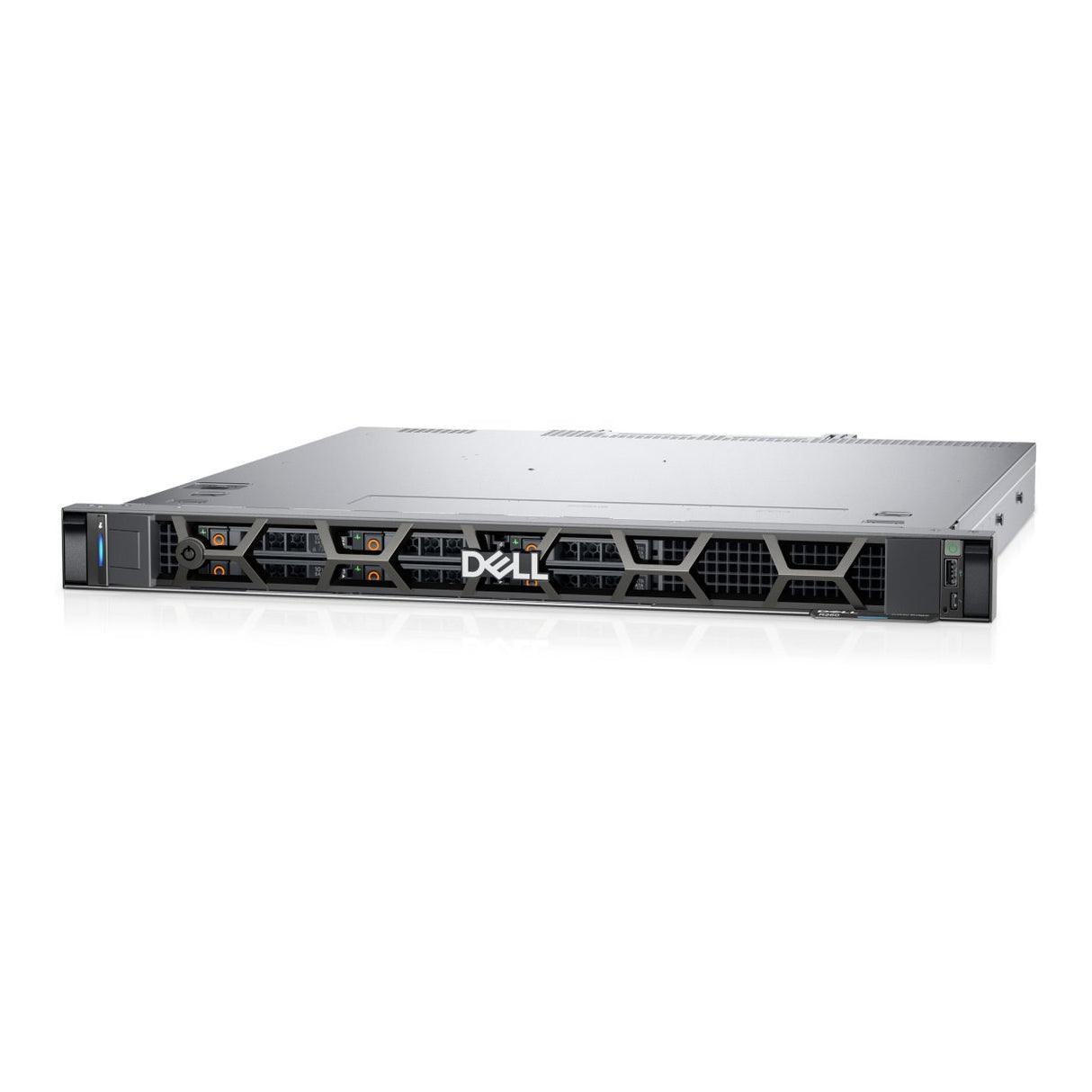

Product: Dell PowerEdge R260

Product type: Server

Chassis type: Rack (1U)

Processor: Intel Xeon E-2414

Processor socket: LGA 1700 – Single CPU

Processor frequency: 2.60 / 4.50 GHz (12 MB Cache, 4 Cores)

Internal memory: 16 GB 5600 MHz UDIMM ECC

Internal memory type: DDR5

Storage capacity: 1 x 2 TB SATA 6Gbps 7.2K 512n 3.5in Cabled

HDD size: Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB (Software RAID)

Discrete graphics model: No GPU support

Optical drive: Not included

PCIe riser: Riser Config 1, Gen4 Riser

Controller: Not included

Raid: No Raid with Embedded SATA

Network adapter: Broadcom 5720 Dual Port 1Gb On-Board LOM

IDRAC9: Basic 16G

Power supply: Single, (1+0) NRDNT, Hot-Plug PSU, 700W MM HLAC (200-240V ONLY, not for 100-120V outlet) Titanium

Redundant power supply (RPS): Not Supported

Operating System: Optional

Rack Rails: 1U/2U Static Rails for 2-Post and 4-Post Racks

Warranty: 3-year Basic Onsite

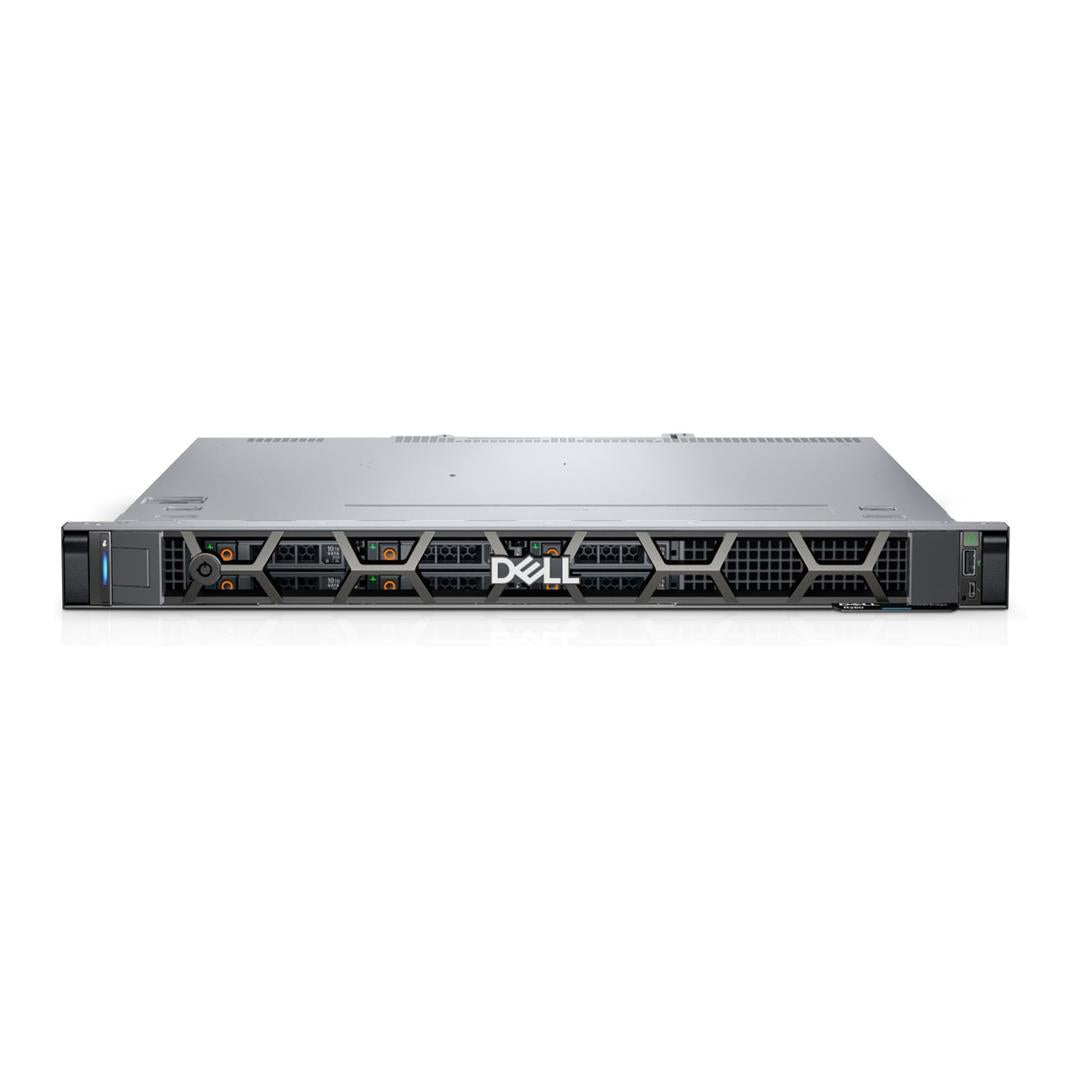

Front Ports

• 1x iDRAC Direct (Micro-AB USB) port
• 1x USB 2.0

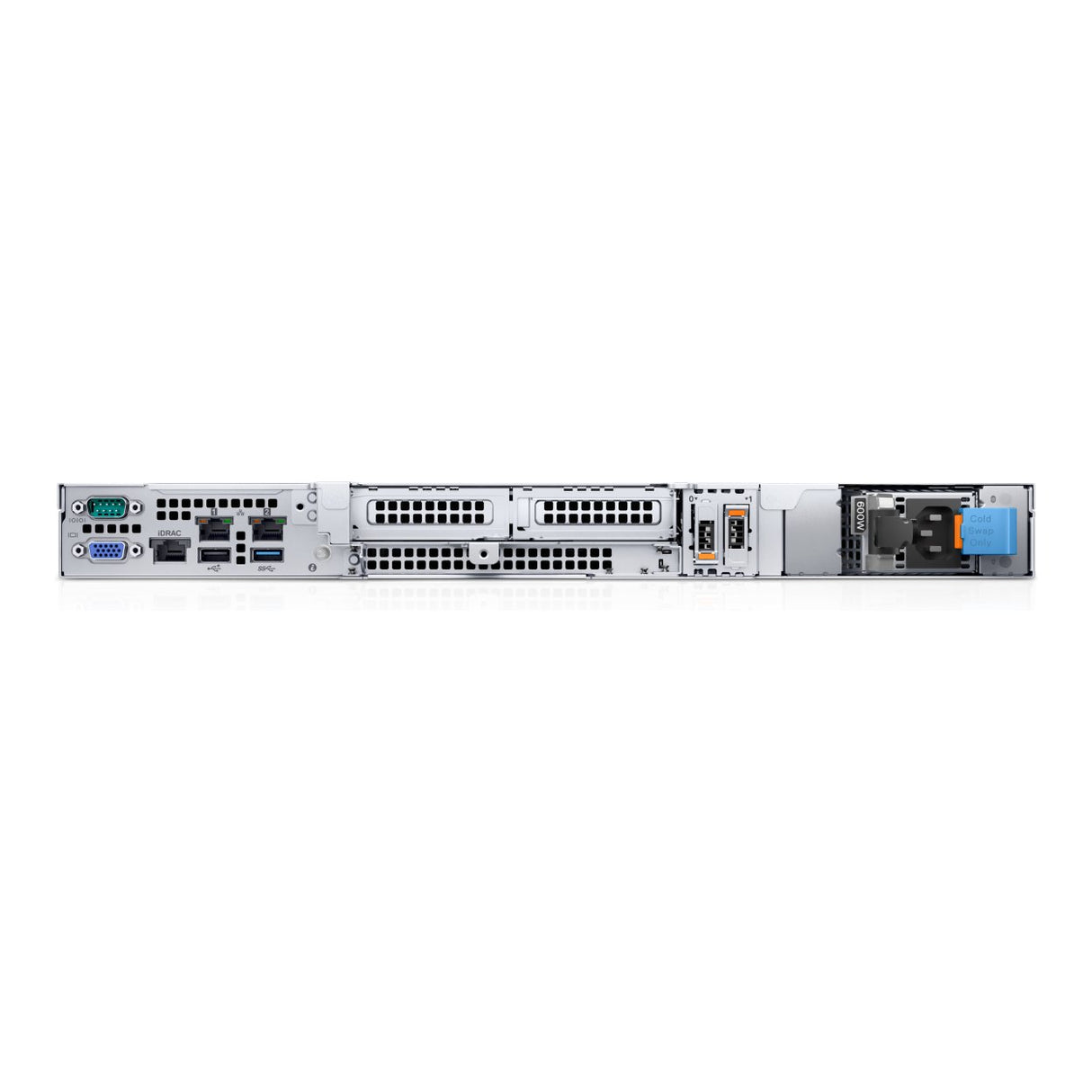

Rear Ports

• 1x Dedicated iDRAC Ethernet port
• 1x USB 2.0
• 1x USB 3.2 Gen1
• 1x VGA
• 1x Serial

Features & Design

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Your innovation engine

The Dell PowerEdge R260 is a 1U, single-socket short-depth server designed to address entry-level compute demands of Near-Edge, Remote Office / Branch Office (ROBO) and SMB.

Short, yet mighty

Space-saving design tailored for Near-Edge and SMB customers

• Short-depth chassis and office friendly acoustic performance
• Easy-to-manage Filter Bezels shield from dust and grease
• Enterprise-level server features and capabilities with optimal price and flexible upgrade options
• Storage options include up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB; or up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB

• Specifications may vary depending upon region / model.

Systems management and security solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
